Himmelstrutz

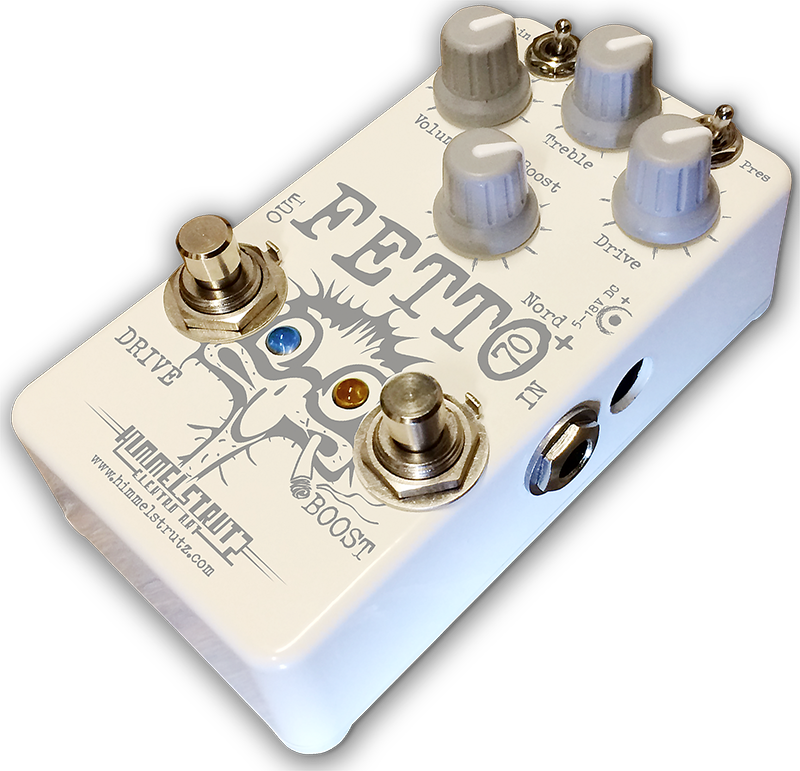

FETTO Nord 70+
GREAT OL’ DISTORTION + BOOST
FETTO Nord 70+ is an extension of the original “FETTO 9.0” (2004) and also an extraction of FETTO Nord+ as the great Mikael Nord Andersson loved it and developed it with us in 2008-2009.
If you want a great sounding but more simple/smaller version of FETTO Nord 70+ (=no external switches and no boost) check out FETTO Junior 70!
Excellent string separation/definition all the way from smooth overdrive into heavy’ish 70’ish distortion. The character of your instrument and amplifier wont get lost—but gained! And this one is designed to match the volume control on your guitar perfectly. Most pedals on Earth sounds just like pedals. Not the case with FETTO Nord 70+, this swivel-hipped loudmouth, born and living in another dimension?—Ed & Mick & Lizzy here we go...
TECHNICALS
Power Consumption
9 V DC/3.5 mA (Very low power consumption)
AC Adapter (Optional)
5-18 V DC, center-pin negative (Straight plug, BOSS Standard connection, regulated power supply)
Dimensions (L/W/H)
111,6/61,6/50,0 mm (4,37/2,4/1,9 In)—Weight: 450 grams/0,99 lbs—heavy!
Colour, finish
May vary depending on season and sometimes by a reason. Feb 2010 and further on: Stockholm White (RAL 9010) with grey/silver print

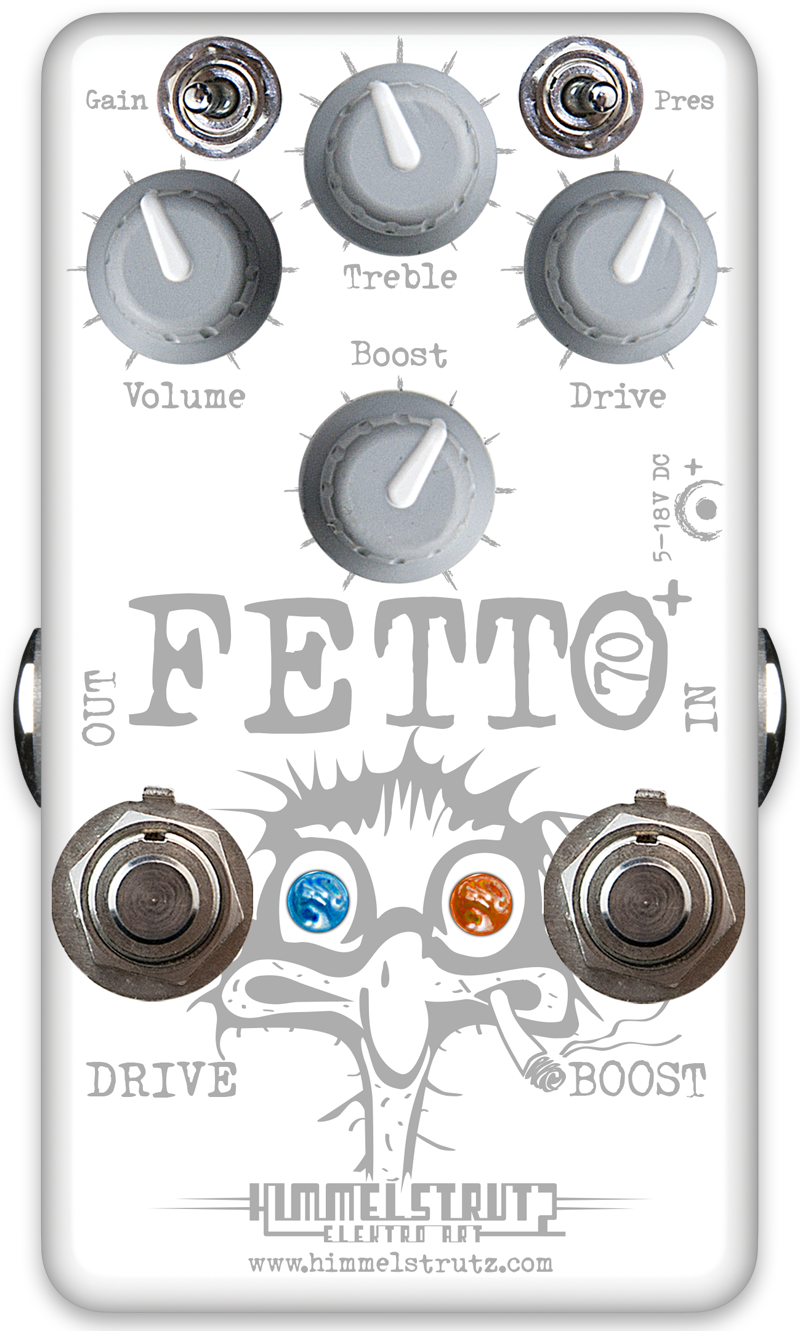

CONTROLS
PUSH SWITCHES
► DRIVE*—Mechanical (true) bypass switching for the OVERDRIVE circuit: ON=blue LED
► BOOST*—Mechanical (true) bypass switching for the BOOST circuit: ON =Orange LED
* The DRIVE/BOOST order is changeable (internal jumper switches)
POTENTIOMETERS
► DRIVE—Amount of overdrive/distortion, very natural, “amp sounding” all the way from lighter/medium/heavier sounds (but never “Metal”)
► VOLUME—OVERDRIVE output level
► BOOST—BOOST output level
► TREBLE—Higher frequencies tone control (passive)

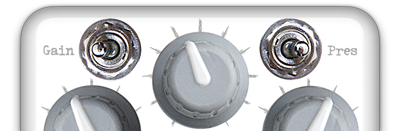

TOGGLE SWITCHES
► PRES.*—3-position toggle/higher frequencies character (passive)
► GAIN*—2-position toggle/gain level HIGH or LOW.
INTERNALS
► DRIVE GAIN & DRIVE BASS & BOOST GAIN trimmers. 3 x jumpers to set the DRIVE/BOOST order (for “Factory Default” adjustments)
FETTO Nord 70+!
DELIVERED WITH FETTO Nord 70+
► Sound and feel you have not experienced before
► 1 x 9 volts battery (6LR61)
► 1 x printed Owner’s Manual
► 1 x Warranty: The Himmelstrutz Elektro Art products includes a 1 year limited materials- and factory warranty (from delivery date). The warranty does not include batteries and consumables. Product service is free of charge during the warranty time. The warranty does not include errors due to product modifications, internal adjustments, disassembly, negligence / violence, incorrect power supply usage/incorrect connections or thunder. Shipping costs in non warranty cases is on the product owner
