FETTO Maximus
Maximused Drive And Boost
| Character | Probably the most versatile FETTO so far made! |
| String separation | Matchless string separation/definition – at any DRIVE/BOOST level! |
| Dynamics | The most Dynamic FETTO model made, if you want (5–32 V internal power!) |
| Creaminess | The most Creamy FETTO model made, if you want (5–32 V internal power!) |
| Punch | The most Punchy FETTO model made, if you want (5–32 V internal power!) |
sold out code
BLOCK DIAGRAM

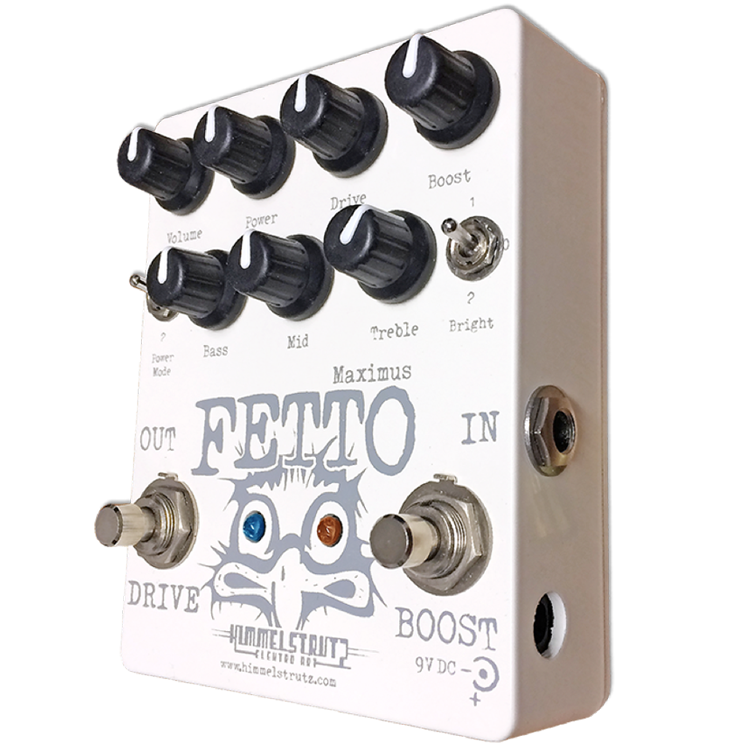

FETTO Maximus Layout / Controls
| IN / OUT | |
| Input | Input impedance: approx. 1 MΩ |
| Output | Output impedance: approx. 10 kΩ |
| Power | |
| DC Input | 9–12 V DC, very low current draw. Internal voltage: 5–32 V (Power / Compression circuit). Optional AC adapter: 9 or 12 V DC, center-pin negative (BOSS-style, regulated). |
| Push Switches | |
| DRIVE | Overdrive true-bypass push switch (Blue LED). |
| BOOST | Boost true-bypass push switch (Orange LED). * DRIVE / BOOST order changeable via internal jumper switches. |
| Potentiometers | |
| Drive | Overdrive / distortion level. |
| Boost | Boost level. |
| Power | Variable Power / Compression (5–32 V internal), two characters via Power Mode toggle. |
| Volume | Output level. |
| Bass | Passive bass control. |
| Mid | Passive mid control. |
| Treble | Passive treble control. |
| Toggle Switches | |
| Power Mode | Sets Power potentiometer character (2-way). |
| Bright | High-frequency amount (3-way). |
| Internals * | |
| Internal jumpers for DRIVE / BOOST order, TREBLE CUT and GAIN. * May vary slightly depending on production day, version and serial number. | |
| Dimensions & Weight | |
| Size | 122 × 95 × 82 mm (L/W/H) |
| Weight | Approx. 400 g |
| Colour / Finish | |
| May vary depending on production period and available parts. | |
DELIVERED WITH THIS SUPER TROUPER
► 1 x 9 volts battery (6LR61)
► 1 x printed Owner’s Manual
► 1 x Warranty: The Himmelstrutz Elektro Art products includes a 1 year limited materials- and factory warranty (from delivery date). The warranty does not include batteries and consumables. Product service is free of charge during the warranty time. The warranty does not include errors due to product modifications, internal adjustments, disassembly, negligence/violence, incorrect power supply usage/incorrect connections or thunder. Shipping costs in non warranty cases is on the product owner
FETTO Maximus Sound & Vision
